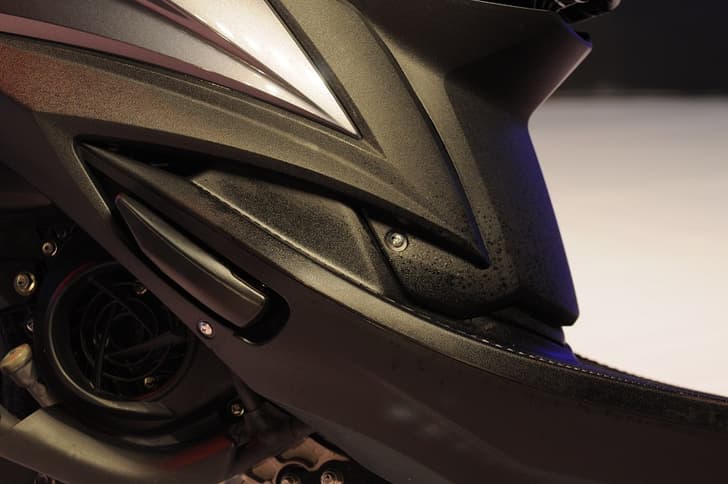

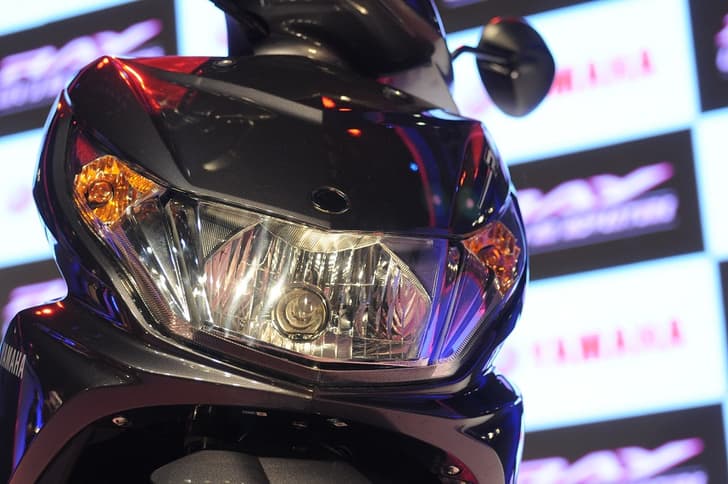

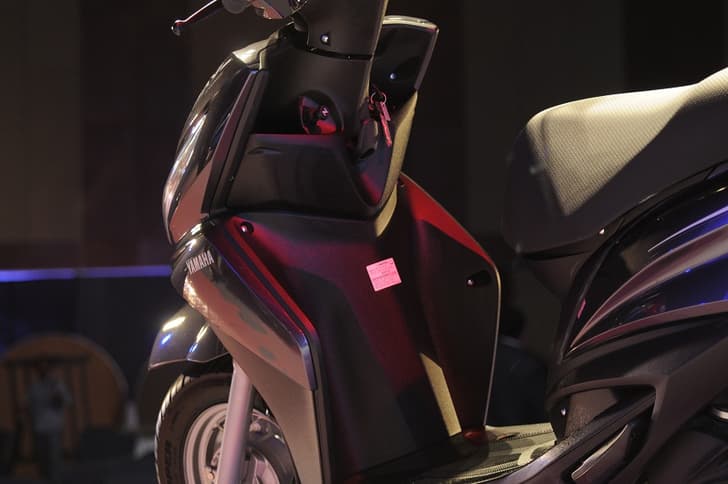

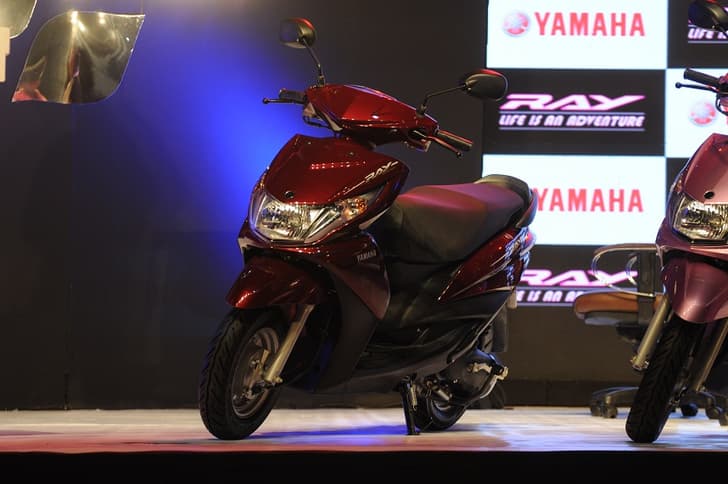

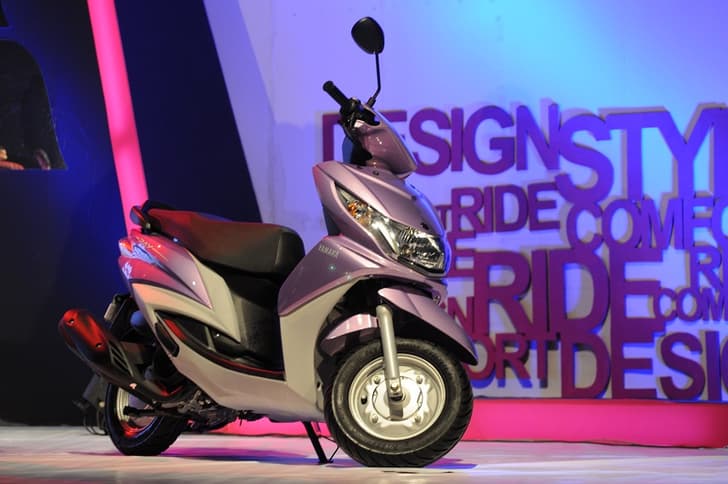

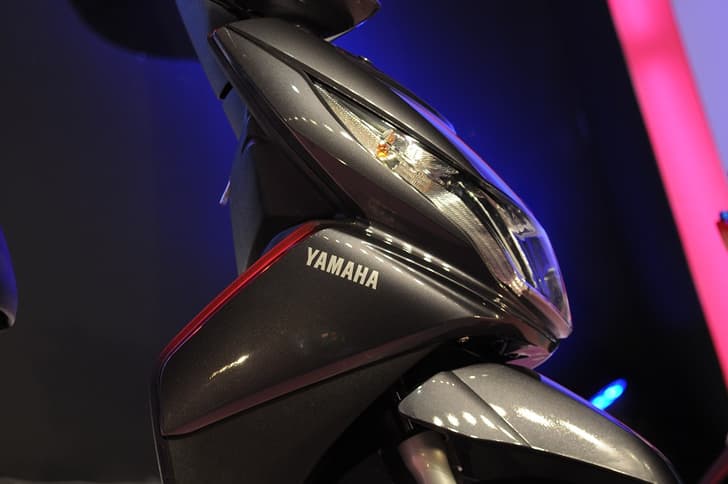

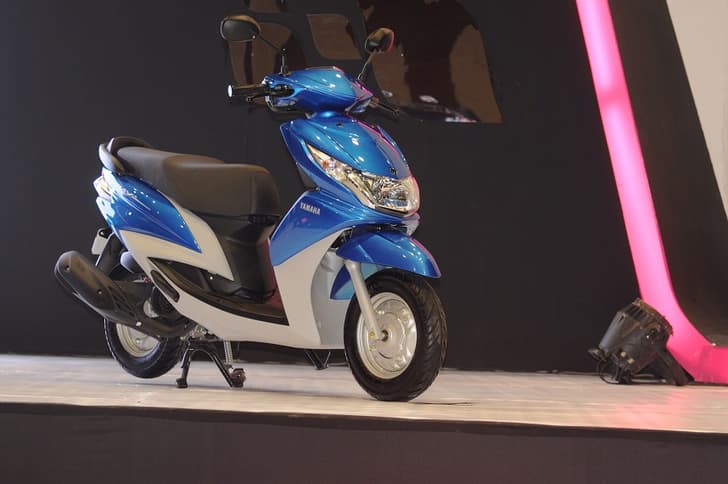

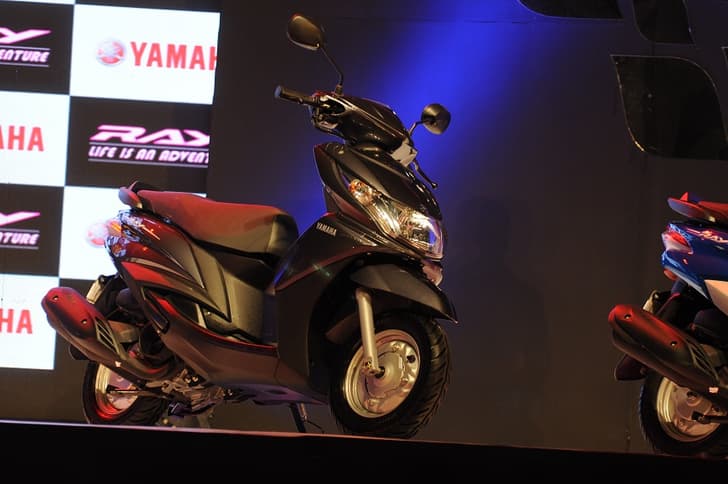

Yamaha's first scooter for India is the Ray, launched in Hyderabad today. The scooter was first displayed at the January Auto Expo in Delhi. The Ray’s youthful styling has sharp lines and a front apron that bears a resemblance to the Honda Dio. The stylish and compact Ray is a light, 113cc scooter, sure to be well-suited to urban-Indian commuting duties.
Length | 1,835 mm |
Width | 675 mm |
Height | 1,075 mm |
Seat height | 760 mm |
Wheelbase | 1,270 mm |
Minimum ground clearance | 128 mm |
Wet(with oil and a full fuel tank) | 104kg |
Engine Performance |
|
Engine type | Air cooled,4-stroke,SOHC,2-valve |
Cylinder arrangement | Single cylinder |
Displacement | 113 cc |
Bore & stroke | 50.0 × 57.8mm |
Compression ratio | 9.2 ：1 |
Maximum horse power | 7bhp/7500rpm |
Maximum torque | 0.82kgm/5000r/min |
Starting system type | Electric and Kick |
Lubrication system | Force-feed lubrication, wet sump |
Engine oil capacity | 0.8L |
Fuel |
|
Fuel tank capacity | 5 litres |
Carburetor Type/Fuel supply | Carburetor |
Electrical |
|
Ignition system type | CDI(Capacitor Discharge Ignition) |
Battery voltage/capacity | 12V,5.0Ah(10H) |
Battery Type | 12MX5L-B /AB5L-B |
Transmission |
|
Primary reduction ratio | 1.000 |
Secondary reduction ratio | 9.388 |
Clutch type | Dry, centrifugal |
Gear ratio |
|
Transmission type | V-belt automatic |
Gear ratio | 2.259～0.824 |
Chassis |
|
Frame type | Underbone |
Caster angle | 27.5° |
Trail | 103 mm |
Tire size(Front) | 90/100-10 53J(Tube type) |
Tire size(Rear) | 90/100-10 53J(Tube type) |
Brake |
|

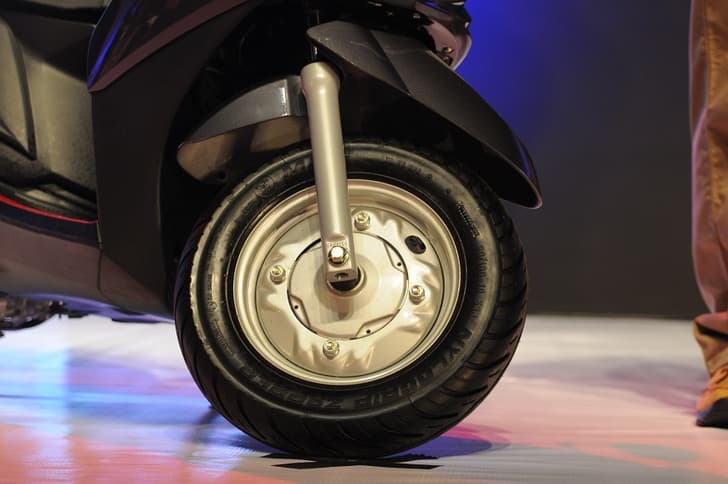

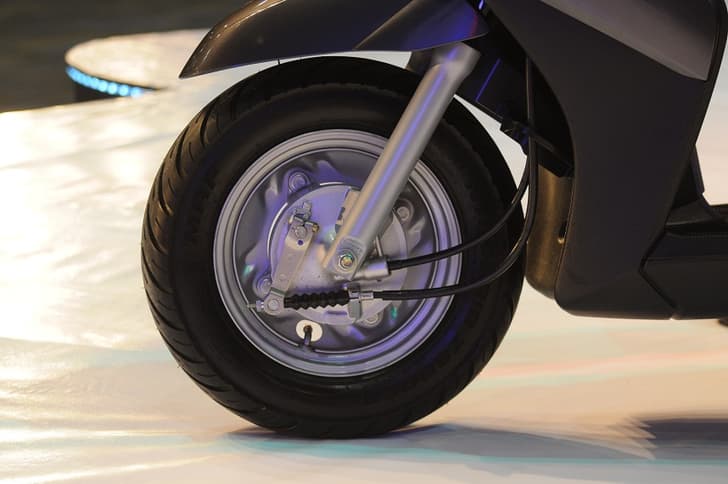

Brake type(Front) | Drum brake, 130mm dia |
Brake type(Rear) | Drum brake, 130mm dia |
Suspension |
|
Suspension type(Front) | Telescopic |

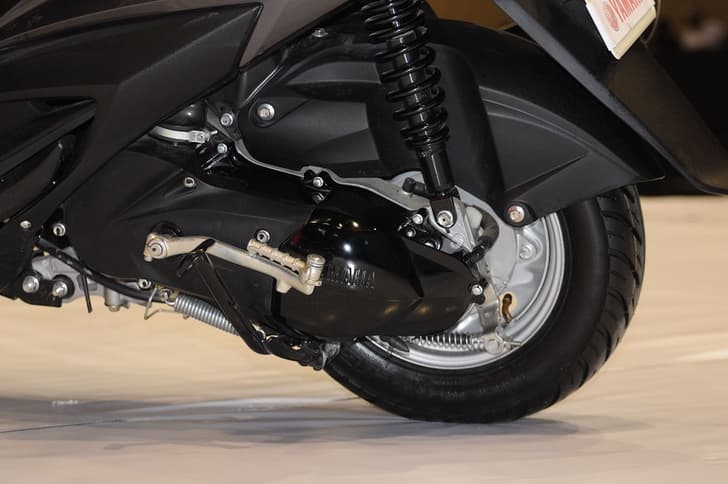

Suspension type(Rear) | Unit swing |
