Honda V3R-derived e-compressor tech could power future models

Honda’s V3R prototype - showcased at EICMA 2025 - has already garnered considerable interest with its compact V3 engine paired with an electrically driven supercharger. Multiple fresh patent filings overseas now indicate that the technology is intended for more than just one motorcycle, with Honda exploring its application across a wide range of existing and future models.

1. New patents show e-compressor integration on Gold Wing, Fireblade and NC750
2. Modular V3 engine architecture could spawn V-twin and V6 derivatives
3. Electric supercharger promises higher performance with improved efficiency

Honda expands scope of its e-compressor technology

Patent filings reveal plans for multiple motorcycle platforms

The newly published patents illustrate the electric compressor being adapted to several engine configurations, including flat-six, parallel-twin, V-twin and inline-four layouts. This suggests Honda views the technology as a modular solution that could be incorporated into different motorcycles without requiring an all-new engine architecture.

Unlike a conventional mechanically driven supercharger or an exhaust-powered turbocharger, Honda’s system uses an electric motor to drive the compressor. Under normal riding conditions, the engine breathes naturally through a separate intake path. When additional performance is required, electronically controlled valves divert airflow through the compressor, allowing the engine management system to precisely regulate boost pressure.

Because the unit does not rely on engine-driven belts or exhaust outflow, Honda has greater flexibility in packaging the compressor wherever space is available within the chassis.

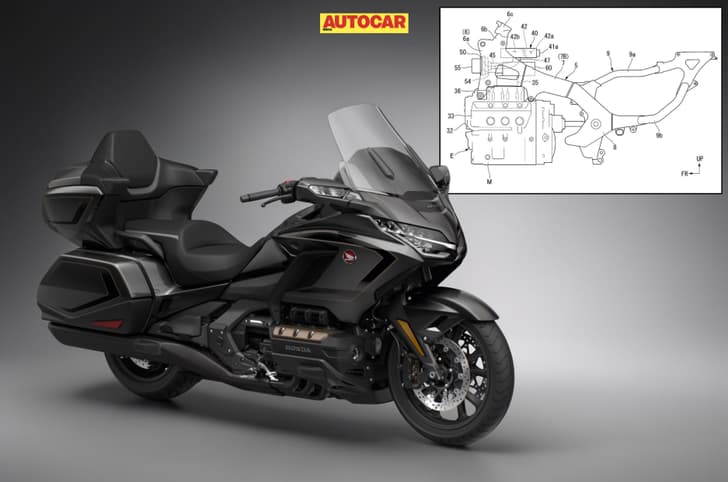

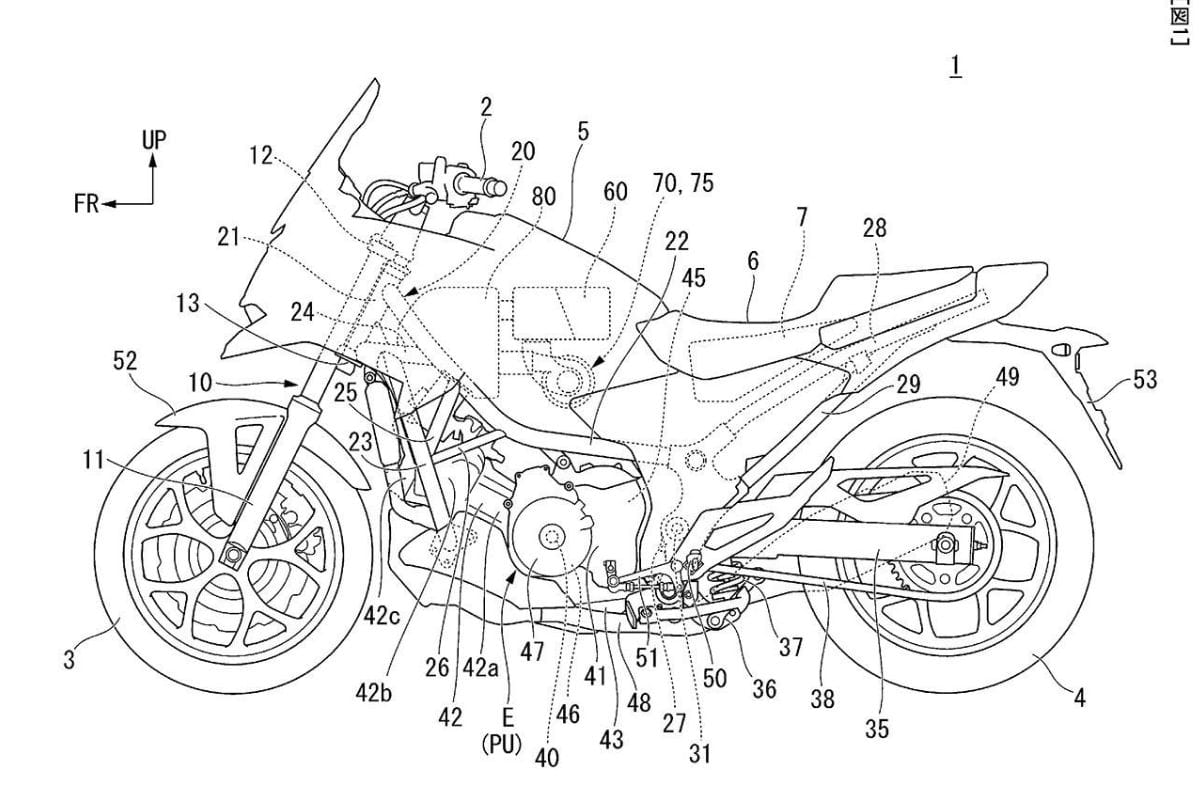

One patent illustrates the system fitted to the Gold Wing, where the compressor sits above the motorcycle’s signature flat-six engine. Another shows the NC750 adopting the setup by utilising part of its distinctive storage compartment, replacing some luggage space with the airbox, compressor and intake.

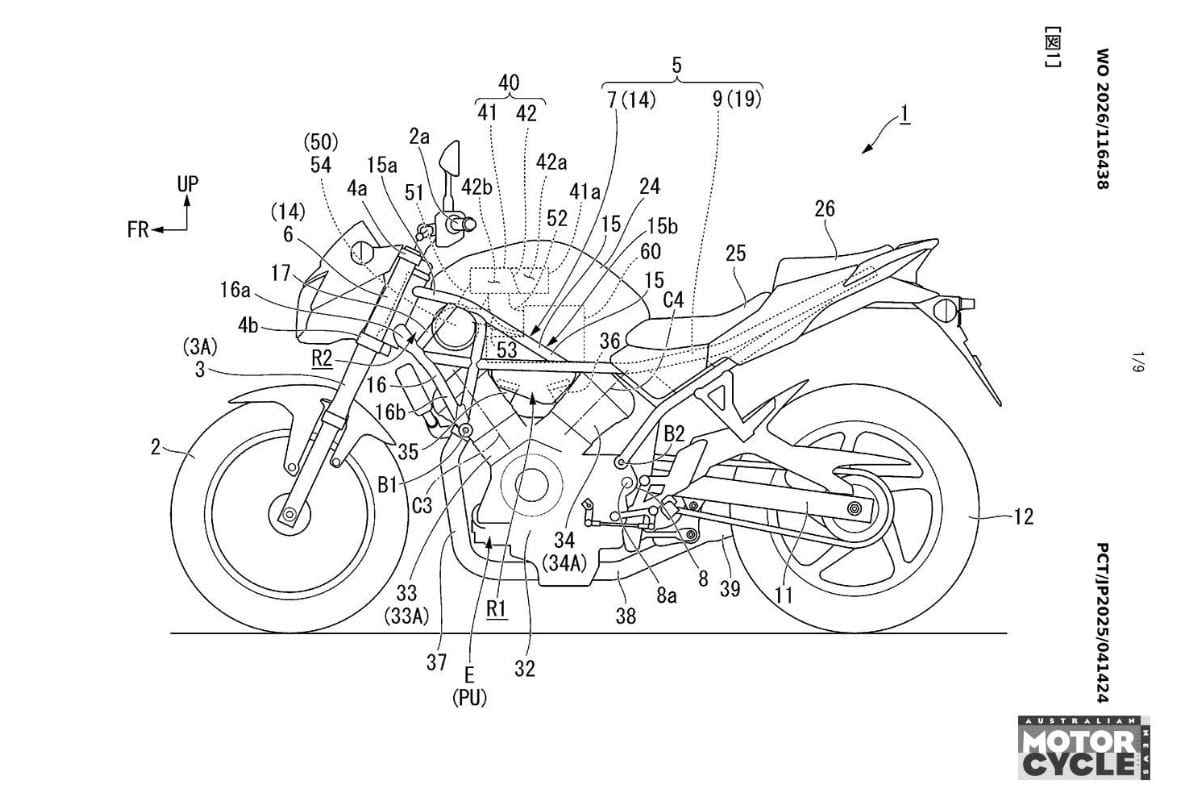

Honda has also patented a V-twin derived from the modular V3 architecture first seen on the V3R. The design effectively removes one cylinder from the V3’s front bank, creating a conventional V-twin while retaining compatibility with the electric supercharger. If Honda follows the same philosophy as the V3R, such a model could deliver the performance of a significantly larger-capacity motorcycle while maintaining a smaller engine.

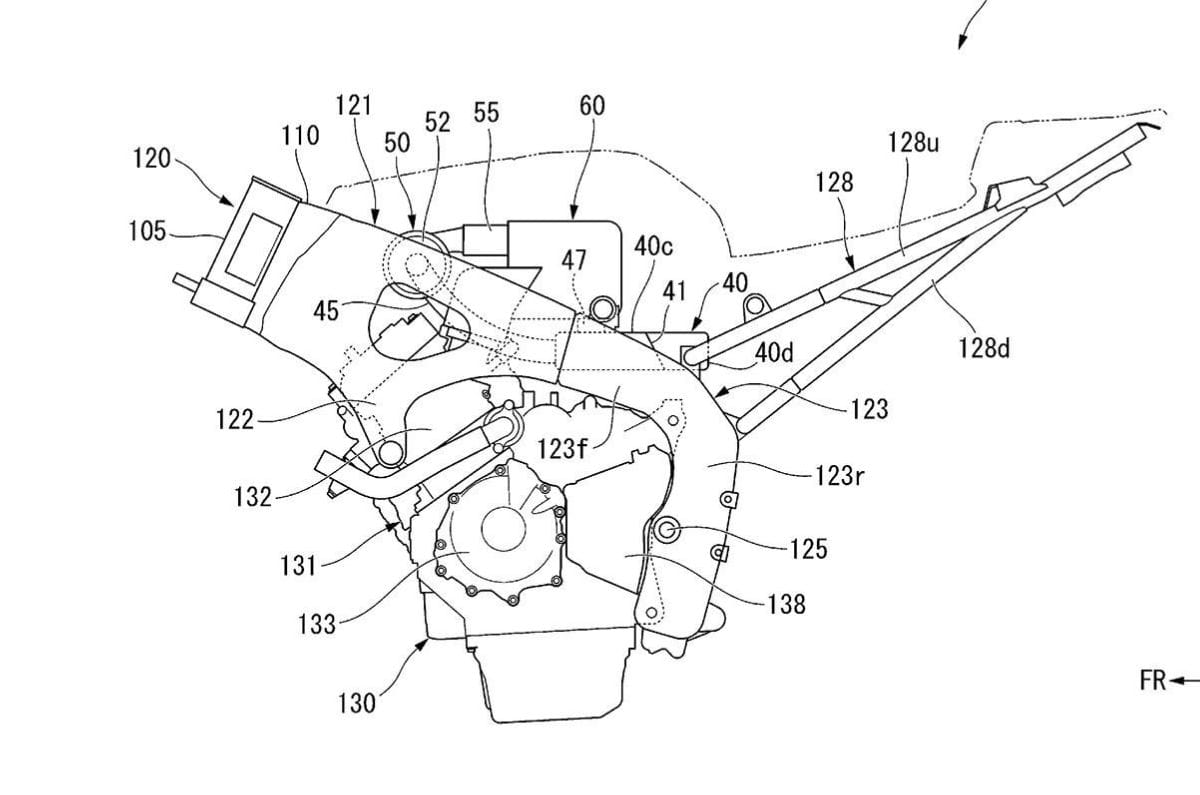

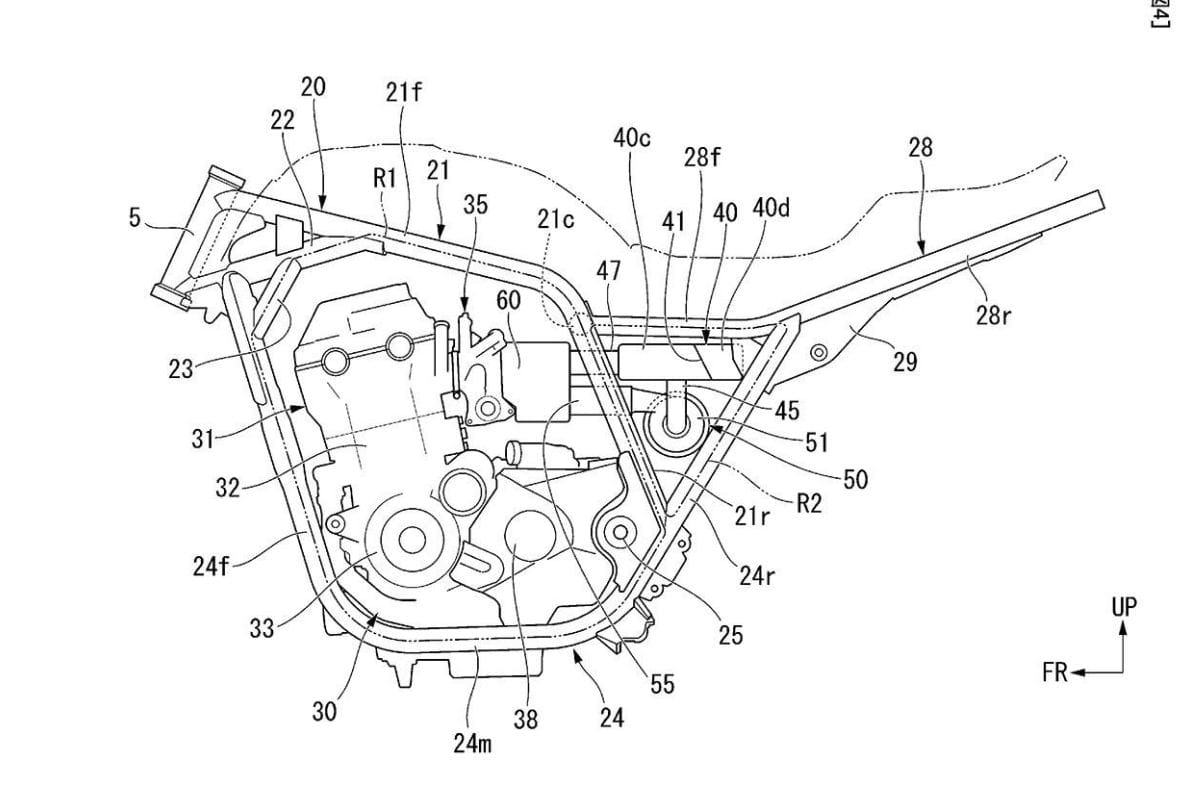

The patents also reference inline-four applications. While one example is based on the now-discontinued CB1300 Super Four, this is likely intended to protect Honda’s packaging solutions rather than preview a production model. Another illustration uses the current CBR1000RR-R Fireblade platform, hinting that the technology could eventually reach Honda’s flagship superbike.

Knowing Honda, patent filings do not guarantee production. However, they do underline the brand’s long-term commitment to electric supercharging and safeguarding its IP rights. If the V3R proves successful when it arrives, the technology could perhaps spread across multiple Honda motorcycles, however it’s quite early to indicate that.

Image credits: Australian Motorcycle News
